SEPPES | Industrial Access Solutions
Built for Secure, Space-Efficient Industrial Access
SEPPES rolling steel door are constructed with interlocking steel slats that coil compactly above the opening. This space-saving design helps maximize usable floor and wall space while providing a durable barrier against unauthorized access, everyday impact, and demanding industrial conditions.
Suitable for warehouses, manufacturing plants, logistics centers, loading areas, workshops, and commercial facilities, each door can be configured around your opening dimensions, operating frequency, site conditions, and control requirements. Manual, chain-hoist, and motorized operation are available, together with custom finishes and safety options.
Rolling Steel Door Configuration Options
Review the available construction, operation, finish, and safety options below. Final dimensions and components are selected according to your opening size, operating frequency, site conditions, and project requirements.
Curtain Construction
Interlocking galvanized steel slats designed for industrial and commercial openings.
Custom Sizing
Door dimensions can be customized to match the width, height, and installation conditions of your opening.
Operation Options
Available with manual push-up, chain-hoist, or motorized operation for different door sizes and operating needs.
Surface Finishes
Choose from galvanized or powder-coated finishes, with selected RAL colors available for project customization.
Safety Options
Optional safety brake, photoelectric sensor, bottom safety edge, warning light, and manual emergency operation.
Control Options
Push-button, remote-control, and access-control integration options are available for different facility requirements.
How Roll up Steel Doors Are Built
Every SEPPES steel roller door is built as an integrated access system. The curtain, guide rails, barrel assembly, drive unit, and safety components work together to provide secure, space-efficient, and reliable operation for industrial and commercial openings.
Interlocking Steel Slats
Form the main door curtain and create a strong, compact barrier when the door is closed.
Barrel Assembly
Supports the door curtain and allows it to coil neatly above the opening during operation.
Reinforced Guide Rails
Keep the curtain aligned while supporting smooth and stable vertical movement.
Bottom Bar & Weather Seals
Improve curtain stability and help reduce gaps along the bottom and sides of the opening.
Drive & Control System
Available with manual, chain-hoist, or motorized operation according to the door size and usage requirements.
Safety Components
Optional safety brake, photoelectric sensor, bottom safety edge, warning light, and emergency operation can be configured for the project.
Contact Us For Customized Solution
Contact us to discover how the SEPPES Steel Roller Door can be tailored to fit the needs of your facility.
APPLICATIONS & SELECTION
Where Industrial Steel Roll up Doors Work Best
SEPPES steel roller doors can be configured for a wide range of industrial and commercial openings. The right setup depends on the opening size, operating frequency, security requirements, site conditions and preferred control method.

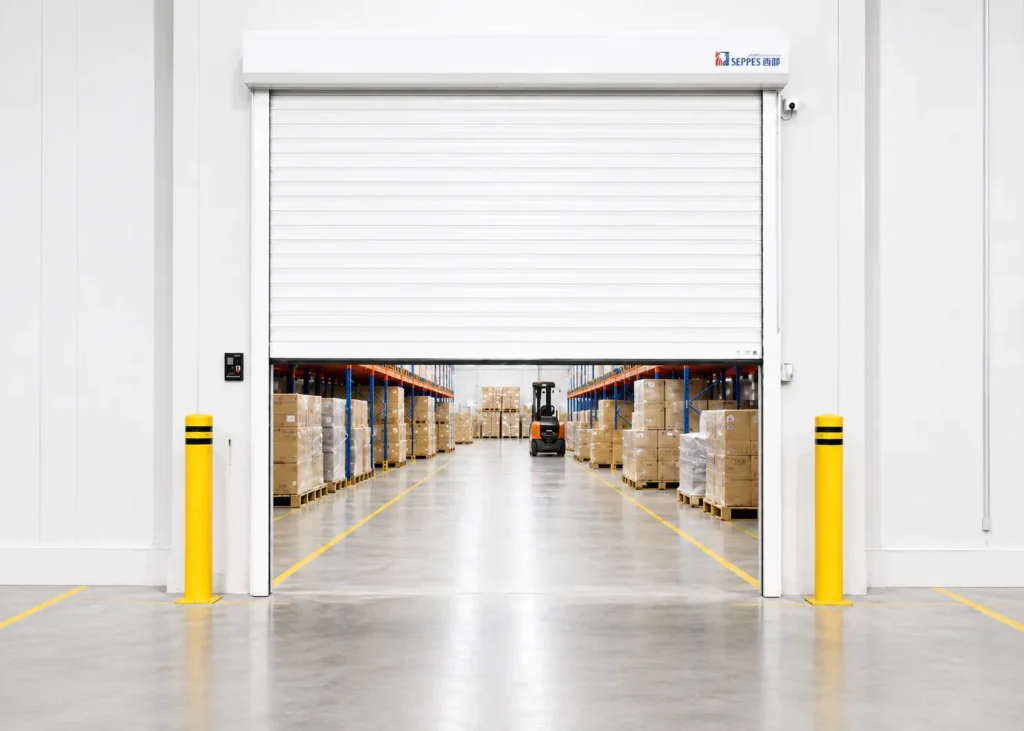

Warehouses & Logistics Centers
Secure storage and distribution entrances while keeping the opening clear when the door is raised.

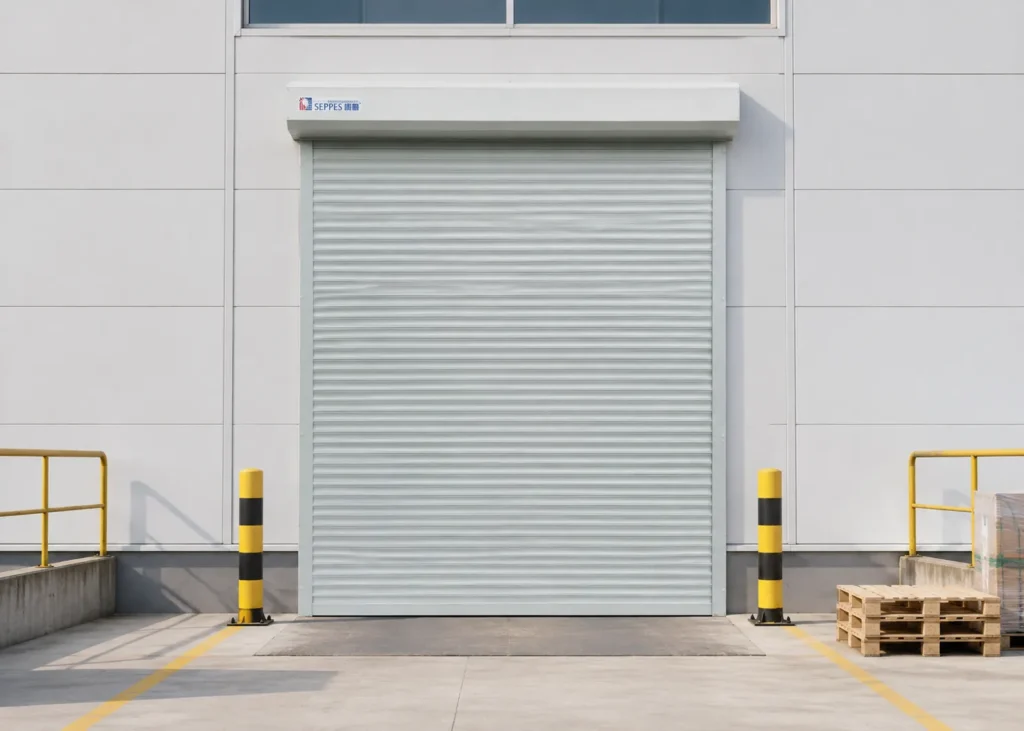

Manufacturing Plants
A durable access solution for production areas, material entrances and internal operational zones.

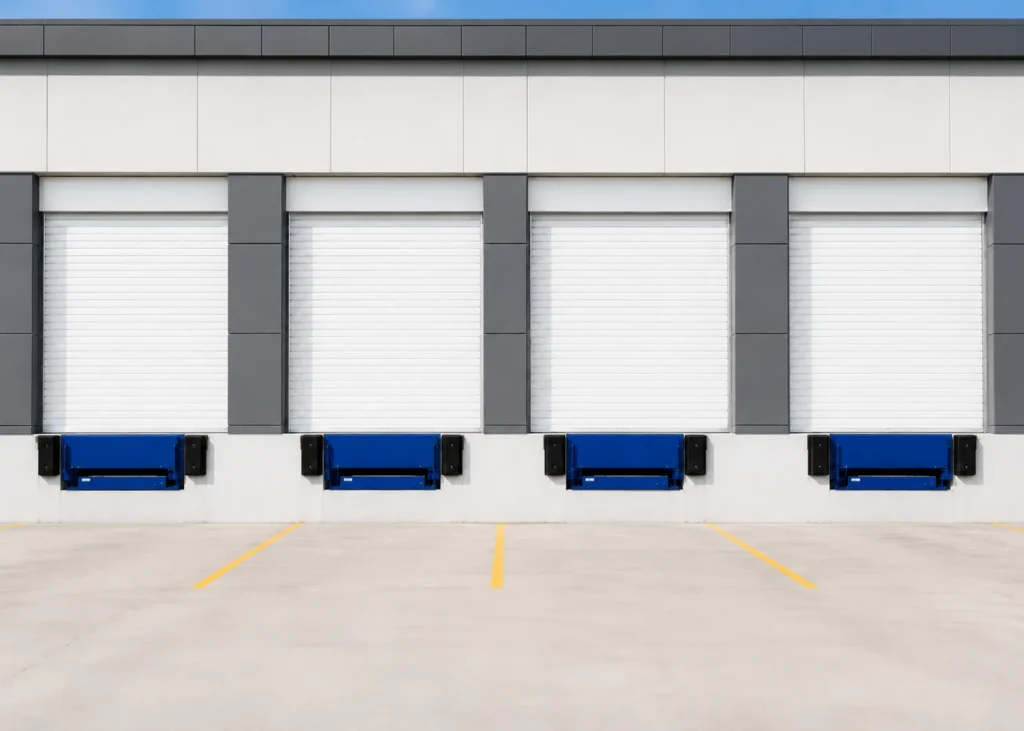

Loading Docks & Service Entrances
Suitable for frequently used delivery openings where convenient operation and entrance safety are important.

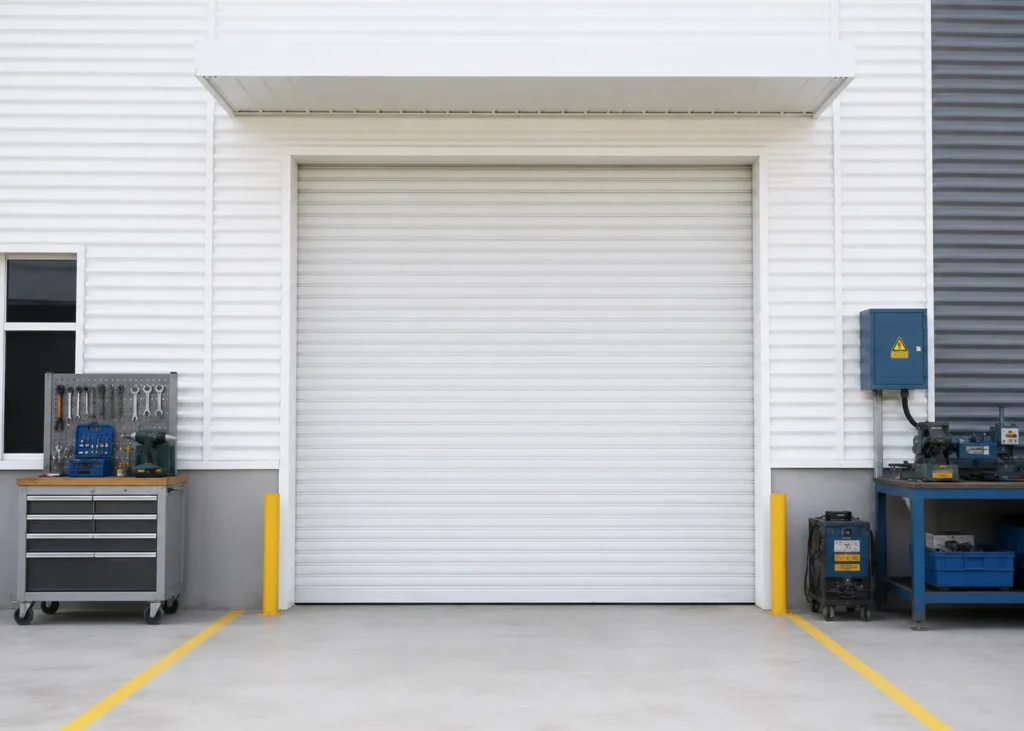

Workshops & Equipment Areas
Helps protect machinery, tools and restricted work areas while allowing practical daily access.

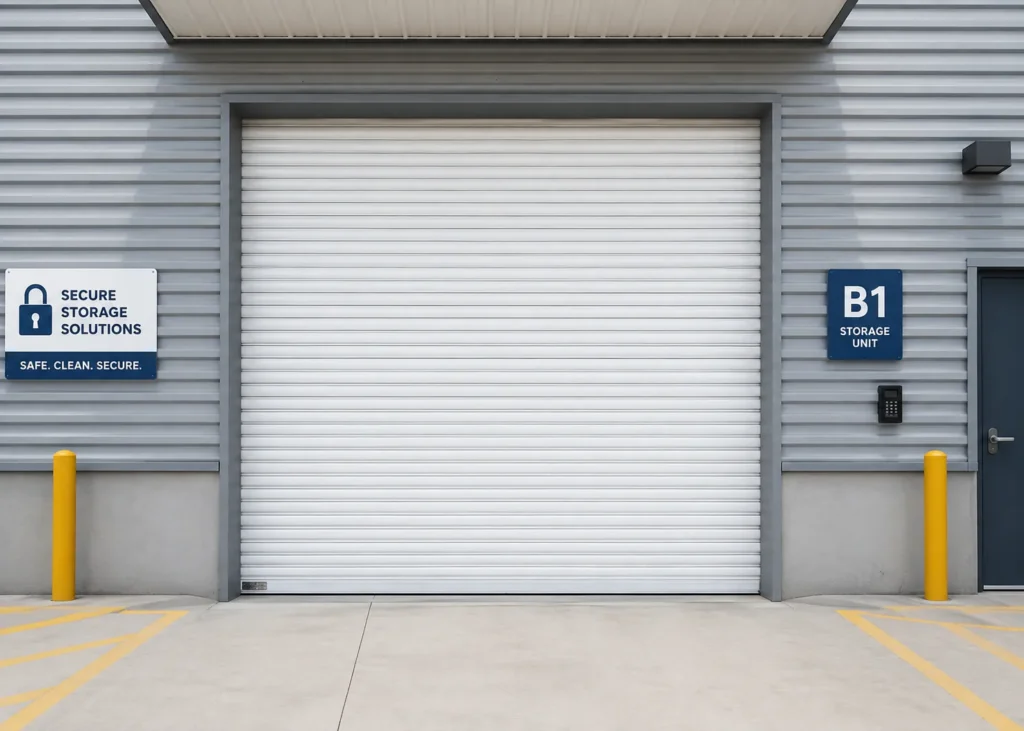

Commercial & Storage Facilities
Provides a compact security barrier for storefront storage areas, service rooms and commercial buildings.

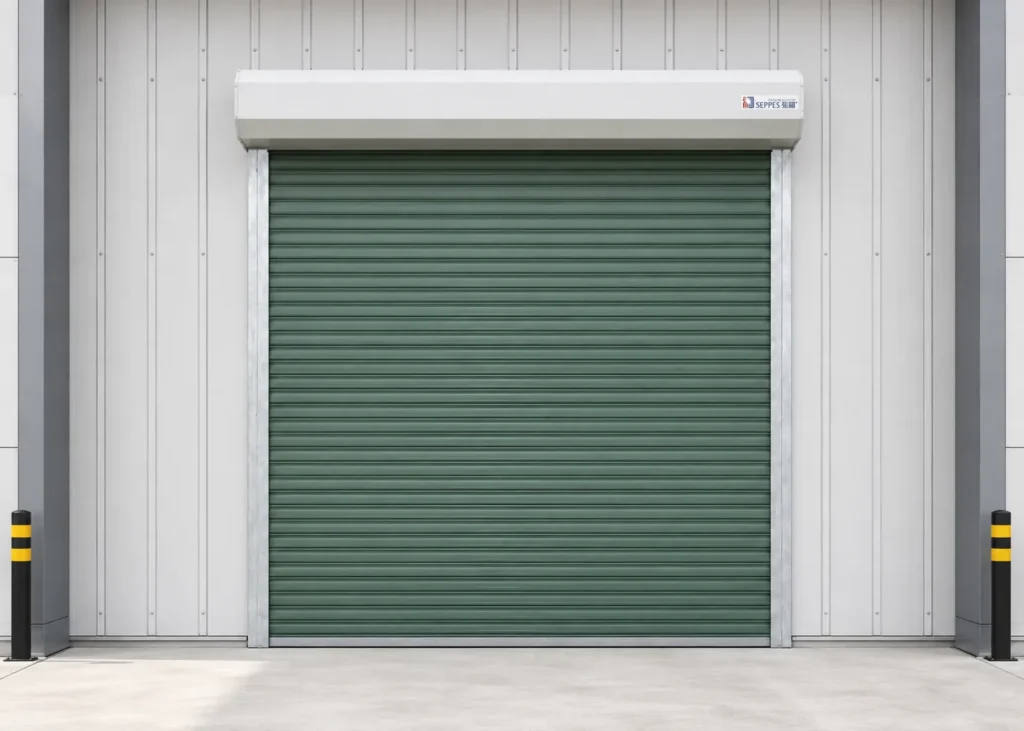

Steel Buildings
Can be configured around different opening dimensions, mounting conditions and building layouts.
What Should You Confirm for Your Application?
Use this guide to identify the information needed before selecting a steel roller door. Final construction, operation, and control details should be confirmed against your opening and site conditions.
| Application | Main Requirement | What to Confirm |
|---|---|---|
| Warehouses & Logistics Centers | Opening security and regular goods movement. | Opening size, estimated daily cycles, vehicle traffic, and preferred control method. |
| Manufacturing Plants | Reliable access around production workflows. | Operating frequency, indoor or outdoor position, site exposure, and safety requirements. |
| Loading Docks & Service Entrances | Clear access for deliveries and service vehicles. | Vehicle and pedestrian movement, opening clearance, control points, and required safety devices. |
| Workshops & Equipment Areas | Controlled access and equipment protection. | Door size, access frequency, available power supply, and operation preference. |
| Commercial & Storage Facilities | Security, compact storage, and suitable appearance. | Finish preference, locking needs, control method, and surrounding building conditions. |
| Steel Buildings | Compatibility with the opening and supporting structure. | Structural opening dimensions, headroom, side room, mounting surface, and available drawings. |
The guide supports initial selection only. Door specifications are finalized after the project information has been reviewed.
Which Steel Roller Door Configuration Fits Your Opening?
Send us the available project details. We will review your opening, application, operating needs, and site conditions before recommending a suitable configuration for quotation.
Provide the details available now. Final specifications are confirmed during quotation.
- Opening Dimensions Clear width and clear height.
- Application & Site Building use and indoor or outdoor position.
- Operating Needs Estimated daily cycles and traffic type.
- Controls & Drawings Preferred operation, photos, or available plans.
Rolling Steel Door Specifications
The following table provides a general specification framework for industrial and commercial steel roller doors. Final dimensions, slat gauge, drive system, and safety configuration are selected according to the opening, operating frequency, and site conditions.
Opening size, wind requirements, mounting clearances, local power supply, and expected daily cycles should be provided before the final door configuration is confirmed.
01 Door Construction
| Product Type | Industrial rolling steel service door for interior or exterior openings. |
|---|---|
| Door Curtain | Interlocking, roll-formed galvanized steel slats with end locks. |
| Slat Profile | Flat or curved profile; perforated slats can be evaluated for applications requiring visibility or ventilation. |
| Slat Gauge | 24, 22, 20, or 18 gauge are common industry reference options. Final gauge depends on door size and required wind performance. |
| Surface Finish | Galvanized finish or powder-coated finish; project colors are selected during quotation. |
| Guide Rails | Formed or structural steel guides sized to suit the curtain, opening, and wind requirements. |
| Barrel Assembly | Steel barrel with a counterbalance spring system selected for the door size and curtain weight. |
| Bottom Bar | Reinforced steel bottom bar with bottom seal or astragal. |
| Hood | Galvanized steel hood enclosing the coiled curtain and barrel assembly. |
| Weather Seals | Bottom, side, and head sealing arrangements are selected according to the installation environment. |
02 Size and Operation
| Opening Size | Custom manufactured to the structural opening. Maximum width and height require engineering review. |
|---|---|
| Mounting Arrangement | Interior or exterior face mount, or between-jamb installation when site clearances allow. |
| Operation Method | Manual push-up, chain-hoist, or motorized operation, selected according to door size, weight, and usage. |
| Motor Selection | Motor type and power are selected according to curtain weight, door dimensions, and expected operating frequency. |
| Power Supply | Matched to the available site voltage, phase, and frequency. Supply details are required for quotation. |
| Opening Speed | Depends on the selected operator, curtain size, and door weight. Confirmed with the final configuration. |
| Operating Frequency | Standard-duty or higher-cycle components are selected according to the estimated number of cycles per day. |
| Emergency Operation | Manual chain or emergency release can be configured for motorized doors, subject to the selected operator. |
| Installation Clearance | Headroom, side room, guide depth, and hood dimensions are calculated from the approved door size and mounting arrangement. |
03 Controls and Safety
| Control Options | Push-button control, remote control, or connection to an access-control system for motorized configurations. |
|---|---|
| Travel Limits | Open and close limit settings matched to the selected operator and door travel. |
| Photoelectric Sensor | Optional sensor for detecting an obstruction in the doorway. |
| Bottom Safety Edge | Optional sensing edge for motorized applications requiring additional closing protection. |
| Safety Brake | Anti-fall or safety-brake configuration selected according to the drive system and project requirements. |
| Warning Device | Audible or visual warning device can be evaluated for vehicle and high-traffic entrances. |
| Locking | Locking method is selected to match manual, chain-hoist, or motorized operation. |
| Wind-Load Design | Available only after the required design pressure, opening size, mounting structure, and project location have been reviewed. |
| Insulated or Fire-Rated Version | Requires a dedicated door construction and model-specific documentation. Do not assume it is included with a standard service door. |
| Applicable Certification | Certification is model- and market-specific. Provide the required standard and destination country during inquiry. |
Rolling Steel Door Installation Requirements
Correct opening measurements and sufficient installation space are essential for door selection. Use the guide below to prepare the dimensions and site information required for technical review and quotation.
Measurement Guide
Measure the Finished Opening
Measure the clear opening after the wall, floor, and supporting structure are complete. Provide photos or drawings when the opening is irregular.
-
01
Clear Opening Width
Measure the finished width between the left and right sides of the structural opening.
-
02
Clear Opening Height
Measure from the finished floor level to the underside of the opening header.
-
03
Available Headroom
Record the clear space above the opening for the barrel, curtain coil, hood, and drive system.
-
04
Available Side Room
Measure both sides separately and indicate the preferred motor or chain-hoist side.
-
05
Mounting Surface
Identify whether the surrounding structure is concrete, structural steel, masonry, or another material.
-
06
Power & Controls
Provide the site voltage, phase, frequency, control position, and preferred operator location.
Information Required Before Door Selection
Send the clear opening width and height, available headroom and side room, wall construction, installation position, local power supply, and site photos or drawings. Final clearance dimensions are confirmed after the door configuration has been reviewed.
Project References
Selected Steel Roller Door Projects
Explore selected SEPPES steel roller door installations for warehouse, manufacturing, and logistics entrances. Client identities and commercial details remain confidential; each case focuses on the application, access requirement, and installed door solution.

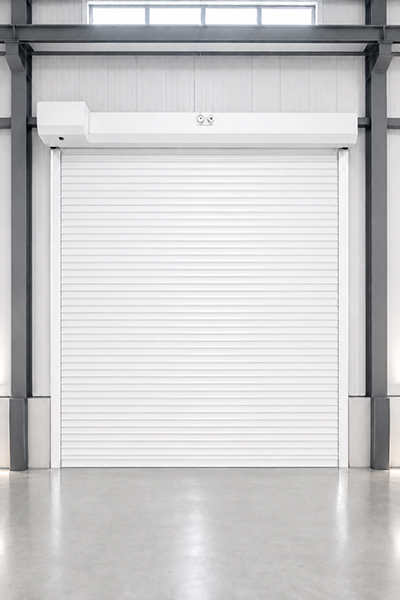

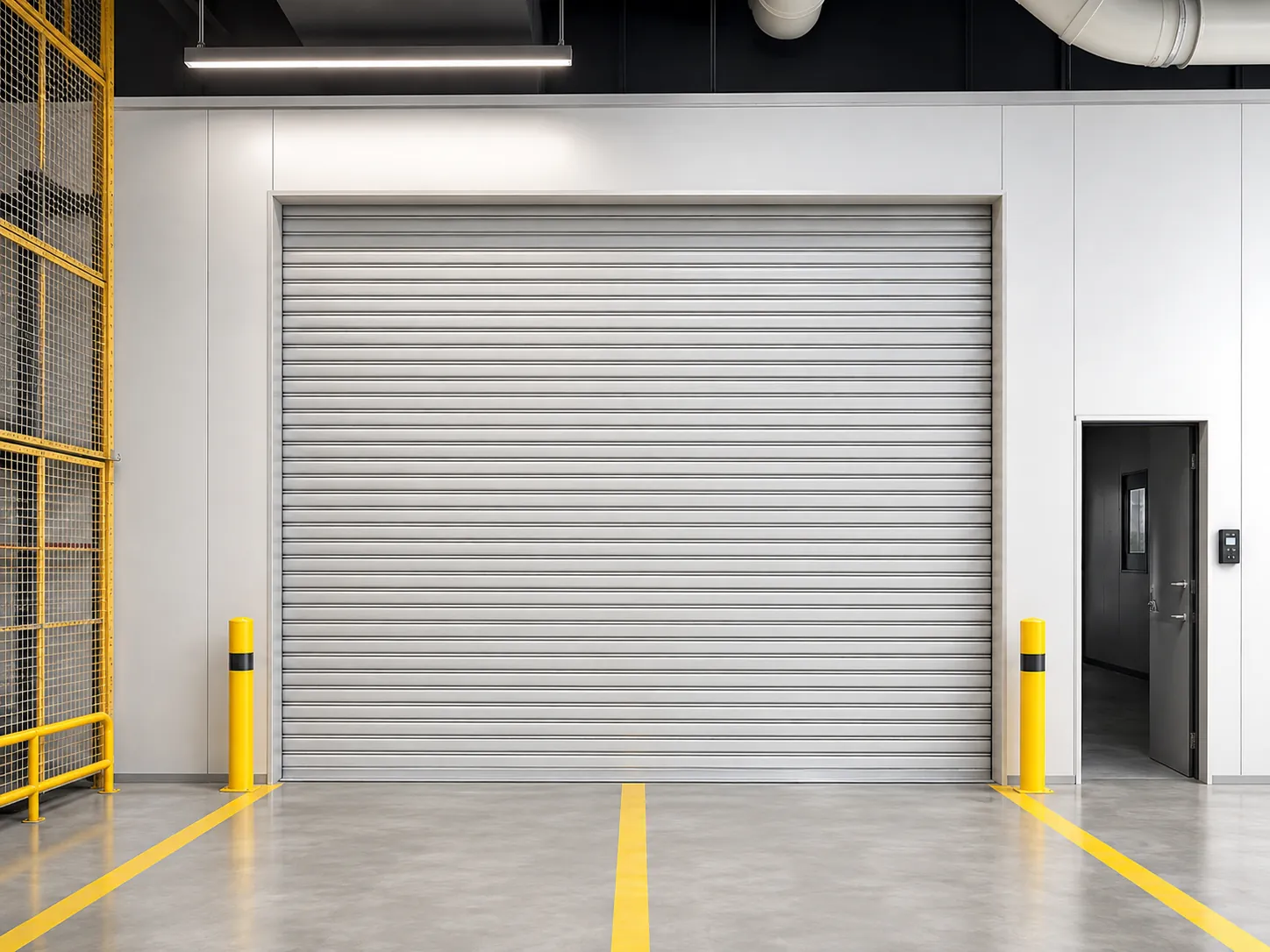

Steel Roller Door for Warehouse Vehicle Access
- Application
- Indoor warehouse and vehicle access opening.
- Project Requirement
- Provide a compact security closure while keeping the entrance clear for routine warehouse movement.
- Installed Configuration
- Interlocking steel curtain, guide system, protected barrel assembly, and project-specific operating controls.
The completed installation uses the space above the opening and keeps the floor area unobstructed.

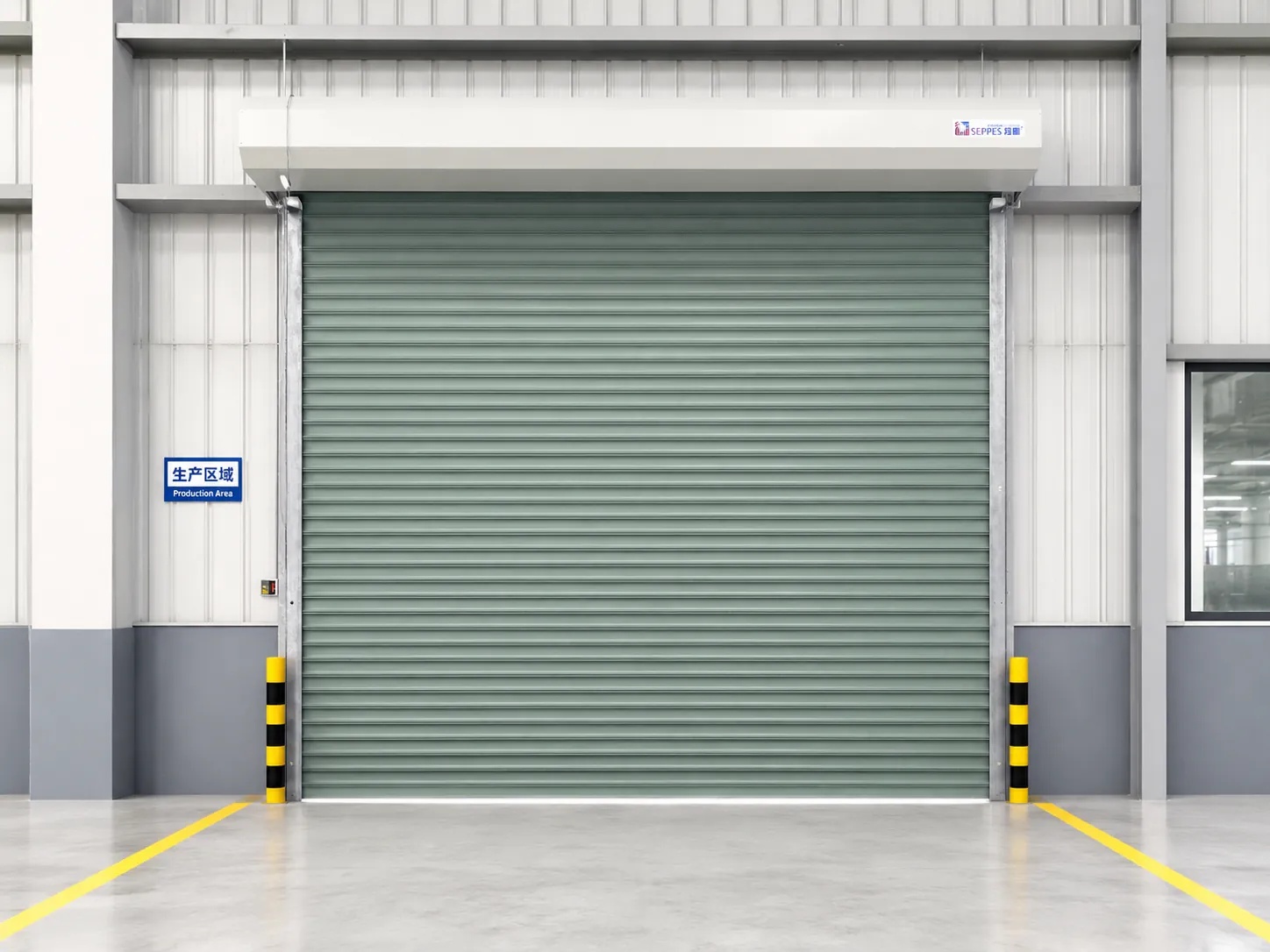

Steel Roller Door for a Manufacturing Workshop
- Application
- Manufacturing production area entrance.
- Project Requirement
- Control access to the production zone while supporting routine personnel and material movement.
- Installed Configuration
- Interlocking steel slats, guide rails, protected hood, and controls selected for the site layout.
The finished door provides a compact closure matched to the workshop entrance and available structure.

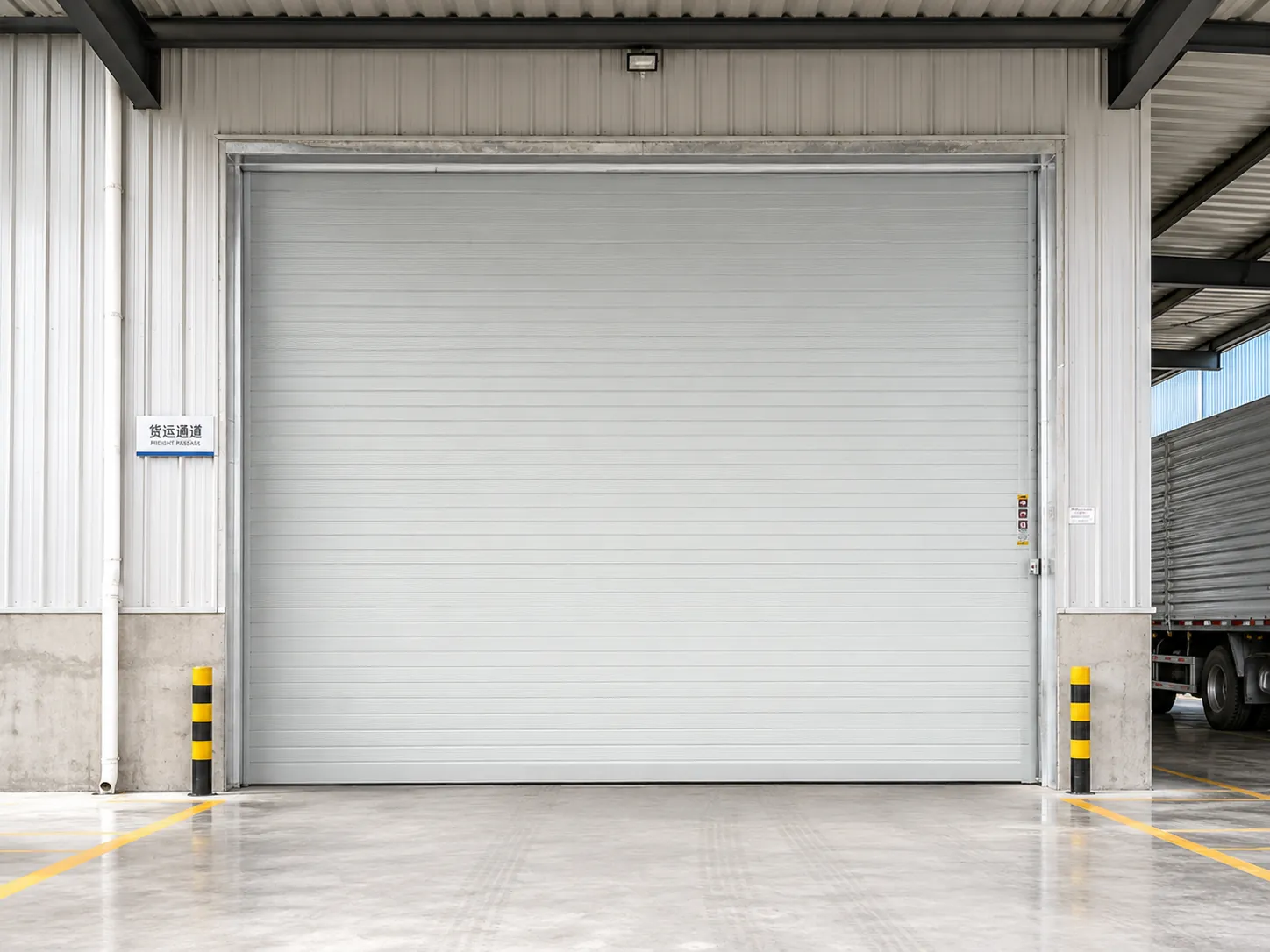

Steel Roller Door for a Logistics Loading Area
- Application
- Logistics freight passage and loading access.
- Project Requirement
- Secure a freight entrance used by loading vehicles and logistics personnel.
- Installed Configuration
- Steel curtain, guide system, hooded barrel assembly, and operating controls selected for the access pattern.
The installed solution maintains a clear loading entrance while the curtain coils compactly overhead.
We Have Authentic And Authoritative Certificates
All aluminum roller doors products have more than 20 international certificates, including certifications such as CE, ISO9001, and CMA
- Contact Email: joey@seppes.com.cn
- WhatsApp: +86 17761926625
Global Intelligent Roller Shutter Door Solutions Provider | SEPPES
Contact us to discover how the SEPPES Industrial Rolling Door can be tailored to fit the needs of your facility.
7600+
Projects
90+
Export Countries
15
Years of Experience
Related Door Solutions
Different types of industrial steel roll up doors options are available for a wide range of industrial environments, providing ease and efficiency of access.
SEPPES Door : Intelligent Access Solution
Leading Roller Shutter Manufacturers in China
SEPPES has 15 years of specialized experience in manufacturing Aluminum Rolling Shutter Doors. Our roller shutter doors are engineered to meet international quality standards (e.g., CE, ISO) and are widely used by over 7,600 enterprises globally, including 80+ Fortune Global 500 companies.
Production starts after order placement, with a lead time of 10-15 working days.

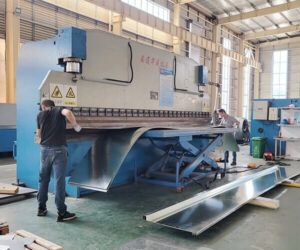

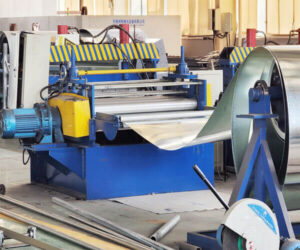

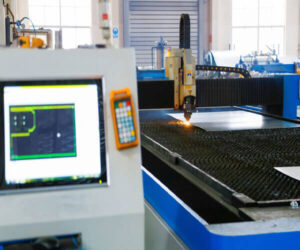

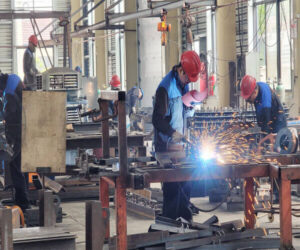

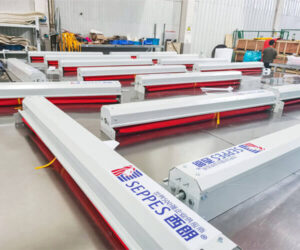

Professional Production and Manufacturing
One-Stop Service from Design to Installation & After-Sales: Quality Assurance and Fast Delivery for Your Industrial/Commercial Rolling Door Needs
Custom Steel Roller Door Transport Service
SEPPES , centered on “Professional Assurance and Full-Process Controllability”, provides global customers with efficient and reliable cross-border transportation solutions. For heavy equipment, such as steel rolling doors, we adopt moisture-proof and shockproof packaging combined with customized wooden pallet reinforcement, resulting in a cargo damage rate far below the industry average.
Our Visit Customers From All Over the World
SEPPES · Industrial Roller Shutter Doors Expert Serving 90+ Countries Worldwide
Why Choose SEPPES Roller Shutter Doors?
Choosing the right door for an industrial or commercial facility is a critical decision that impacts security, efficiency, and energy costs. SEPPES Roller Shutter Doors are engineered to meet these needs, offering a superior solution for modern facilities.
Customized Solutions
You can specify the exact size, choose from various colors and finishes to match your brand aesthetic, and select from multiple opening methods.
Durability and Security
The interlocking slat design creates a formidable barrier that protects your assets, inventory, and personnel. Engineered to withstand rigorous, high-traffic use.
Global Project Experience
SEPPES has customized roller doors for 7,600+ corporate clients (including 80+ Fortune 500 firms) across 90+ countries.
Professional Team
The seppes professional team will respond within 24 hours. Determine product information and provide intelligent solutions.
Buyer's Guide
Steel Roller Door FAQs
Find practical answers about door selection, dimensions, operation, installation, safety options, finishes, and project-specific configuration.
What information is required to select a steel roller door?
To recommend a suitable configuration, provide the finished opening width and height, available headroom and side room, mounting surface, indoor or outdoor location, and expected operating frequency. Include your preferred manual, chain-hoist, or motorized operation, power supply, control method, and required safety devices. Site photos or drawings help identify beams, pipes, columns, slopes, and other obstructions. The manufacturer should confirm the final door dimensions and installation clearances before production.
What is the difference between manual, chain-hoist, and motorized operation?
Manual operation may suit smaller doors with limited daily use. A chain hoist gives the operator mechanical assistance and can work where electrical power or automatic controls are unnecessary. Motorized steel roll up doors support more frequent access and can connect to push buttons, remote controls, or access-control systems. The correct option depends on curtain weight, opening size, operating cycles, available power, user access, and the required method for emergency manual operation.
How are rolling steel door dimensions determined?
Begin with the finished structural opening, then measure the width and height at several points to identify uneven surfaces or out-of-square conditions. Also record the available headroom, side room, backroom, lintel construction, floor level, and nearby obstructions. These details affect the guide rails, hood, barrel assembly, brackets, and operator position. A rolling steel door installation should follow manufacturer-confirmed production dimensions rather than relying only on a nominal or preliminary opening size.
Can a rolling steel door be installed inside or outside the opening?
Inside-face, outside-face, and between-opening mounting may be possible, but the building structure and available clearances determine the practical choice. Review headroom, side room, vehicle clearance, wall strength, operator access, weather exposure, and maintenance access before selecting the mounting position. Exterior installations also require attention to corrosion protection, water management, seals, fixings, and local wind conditions. Confirm the final arrangement against project drawings and verified site measurements before production begins.
What safety and control options are available?
Depending on the selected door and operator, control options may include push buttons, remote controls, key switches, access-control connections, and warning devices. Project-specific safety options can include photoelectric sensors, a bottom sensing edge, a safety brake, and emergency manual operation. The appropriate combination depends on opening size, traffic type, operating frequency, control logic, and applicable project requirements. Confirm compatibility and the required safety sequence during technical review rather than treating every option as standard equipment.
Can the steel curtain color and surface finish be customized?
Available finishes depend on the selected curtain material, slat profile, production process, and project quantity. Common directions can include galvanized surfaces or coated finishes in project-selected colors where the chosen construction supports them. Consider indoor or outdoor use, corrosion exposure, cleaning requirements, surrounding architecture, and expected maintenance when selecting a finish. Provide the required color reference and environmental conditions during the inquiry so the manufacturer can confirm availability, appearance, and any material limitations.
Are steel roller doors suitable for exterior and windy locations?
A steel rolling door can serve an exterior opening when its construction matches the actual site conditions. The technical review should consider the required design pressure, opening dimensions, building height, exposure, mounting structure, guide arrangement, slat construction, fixings, corrosion conditions, and local requirements. Do not assume that a standard service door automatically meets a specific wind-load target. Provide the project location and required design criteria so the manufacturer can evaluate an appropriate engineered configuration.
What routine maintenance does a steel roller door require?
Routine inspection should cover the curtain or slats, guide rails, bottom bar, fasteners, brackets, hood, operator, travel limits, seals, and installed safety devices. Keep the guides and surrounding area free from debris, and investigate unusual noise, uneven travel, impact damage, or changing operating resistance. Follow the model-specific maintenance manual and service schedule. Qualified personnel should handle spring tension, electrical work, safety-device testing, and repairs. Inspection frequency depends on operating cycles, traffic, environment, and site conditions.
