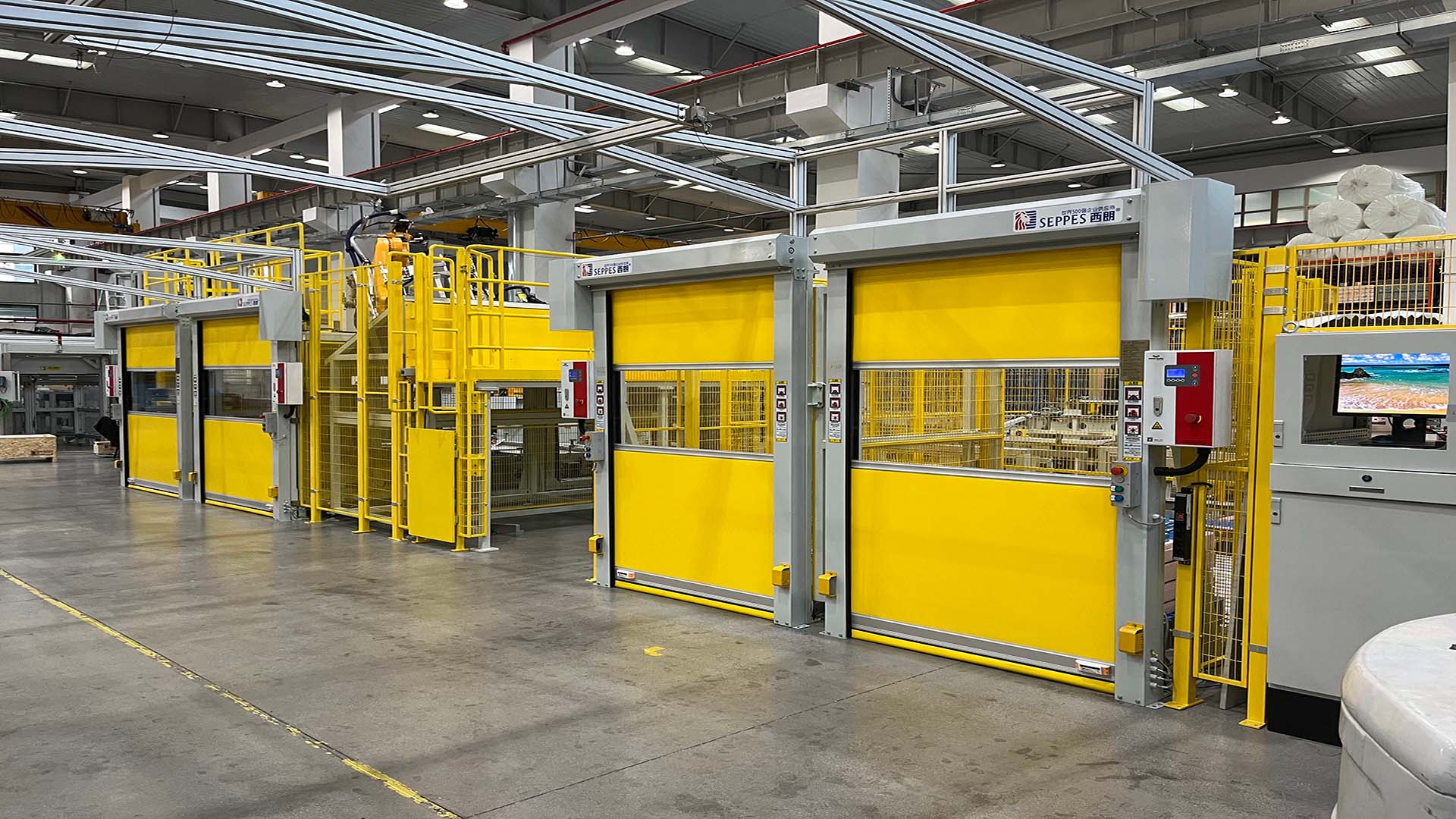

Machine Protection Doors
for Automated Equipment Safety
High-speed protective doors for robotic cells, automated production lines, AGV transfer openings and machine guarding applications.
What Are Machine Protection Doors?
Machine protection doors are high-speed industrial doors used to separate operators from moving machines, robotic arms, welding stations, conveyors and other hazardous equipment zones.
Compared with standard PVC high-speed doors, machine protection doors focus more on controlled access, operator safety, machine guarding, process visibility and integration with automated equipment.
Why Automated Equipment Needs Machine Protection Doors
In automated factories, a door is not only an access point. It becomes part of the safety logic, production rhythm and machine guarding system.
Reduce access risks around moving machinery
The door helps prevent direct entry into robotic cells, machine tending areas and moving equipment zones during operation.
Limit sparks, dust and debris from escaping
For welding, cutting and processing areas, the curtain and sealing structure help separate the process from surrounding workspaces.
Maintain short production cycles
Fast opening and closing speed helps reduce waiting time for conveyors, AGVs, robots and material transfer systems.
Key Advantages of SEPPES Machine Protection Doors
Designed for industrial automation environments where safety, speed, visibility and equipment linkage are required at the same time.
High-Speed Opening
1.0–1.8 m/s opening speed and 0.6–1.0 m/s closing speed support frequent operation in production lines.
Multi-Layer Safety Options
Optional safety edge, infrared photocell, light curtain and safety switch help improve personnel and equipment protection.

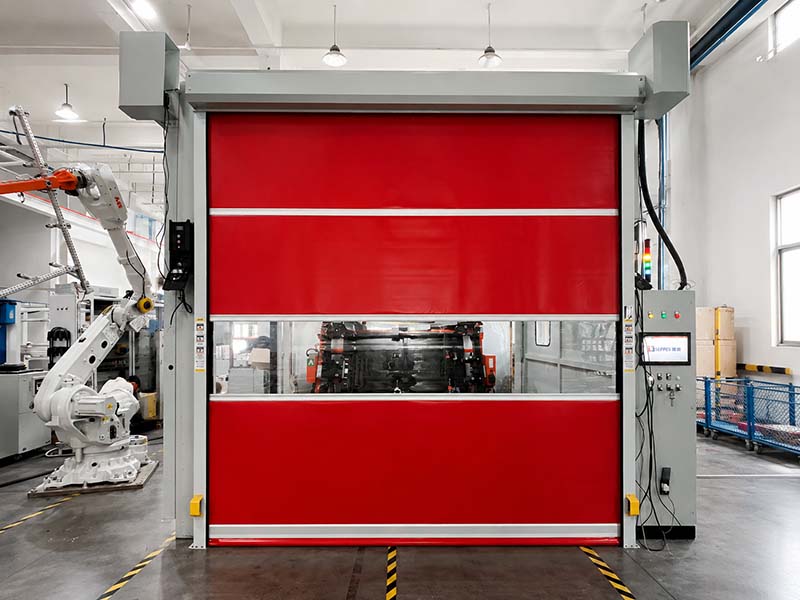

Transparent Vision Window
Optional red anti-arc or transparent window supports internal visibility and easier equipment monitoring.
Automation-Ready Interface
Reserved control signal ports enable linkage with PLCs, robots, conveyors, AGVs and remote control systems.
Integrated Aluminum Frame
3.0 mm aluminum alloy integrated frame provides a compact, stable and clean appearance for equipment enclosures.
Custom Configuration
Door size, curtain color, window position, activation method and safety device configuration can be selected by project.
Applications of Machine Protection Doors
Suitable for industrial automation projects where fast access, controlled isolation and equipment safety are required.

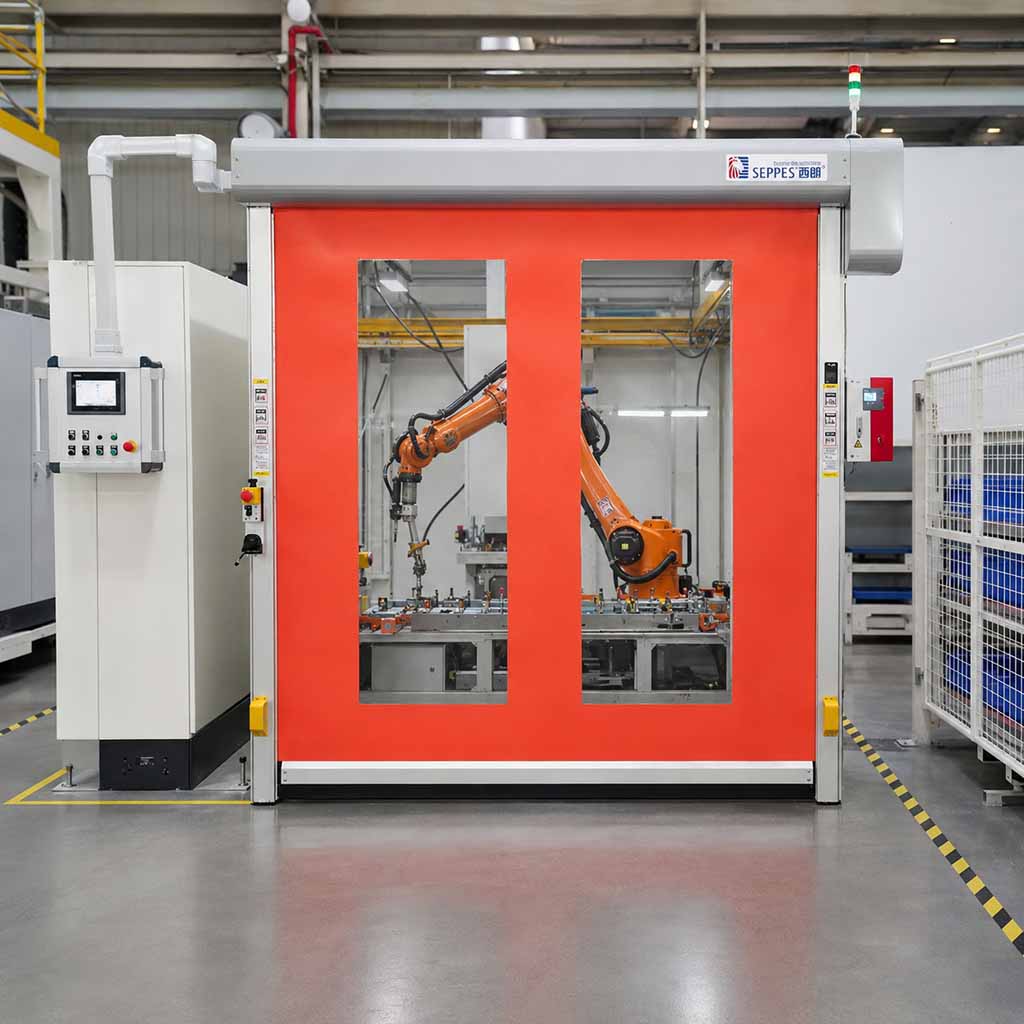

Robotic Workstations
Controls access to robot cells while supporting visual monitoring and automated operation.

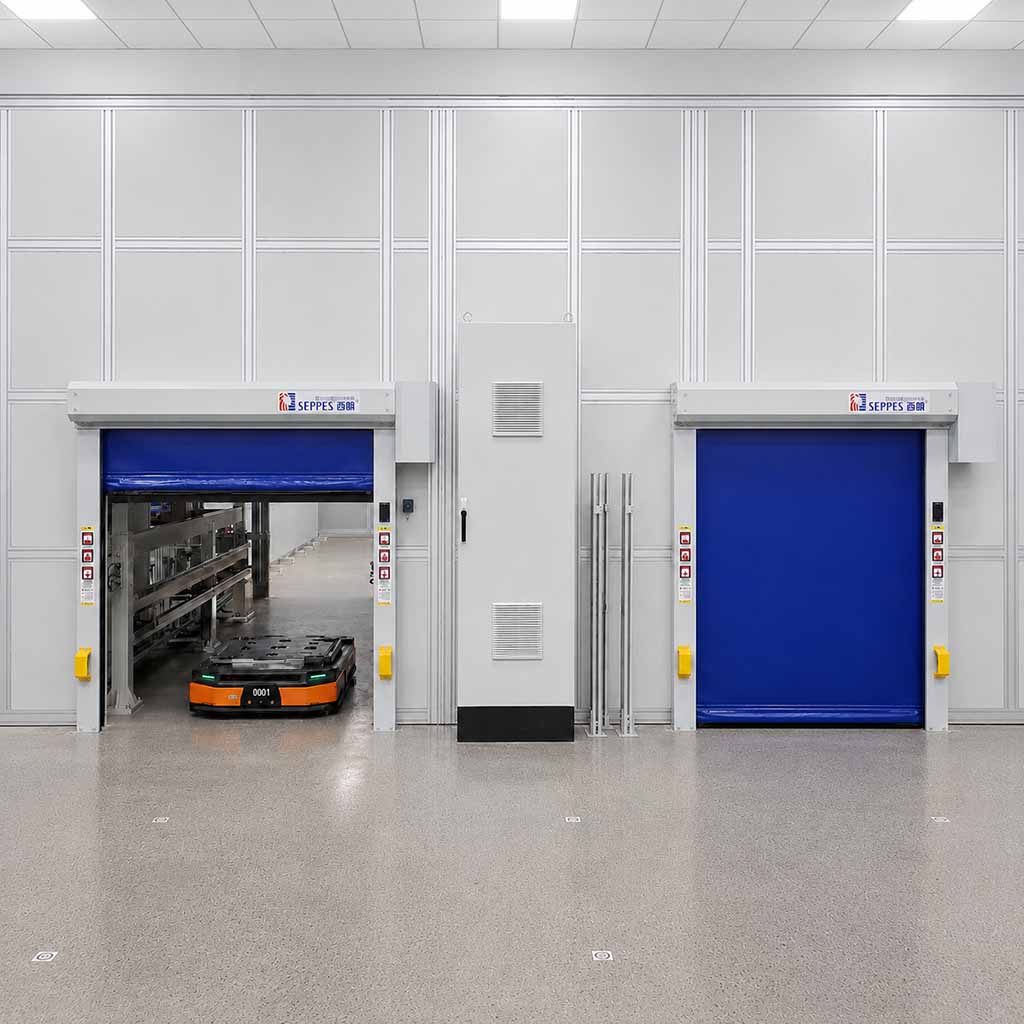

AGV & Conveyor Transfer Openings
Allows rapid material transfer between guarded areas, conveyors and automated transport systems.

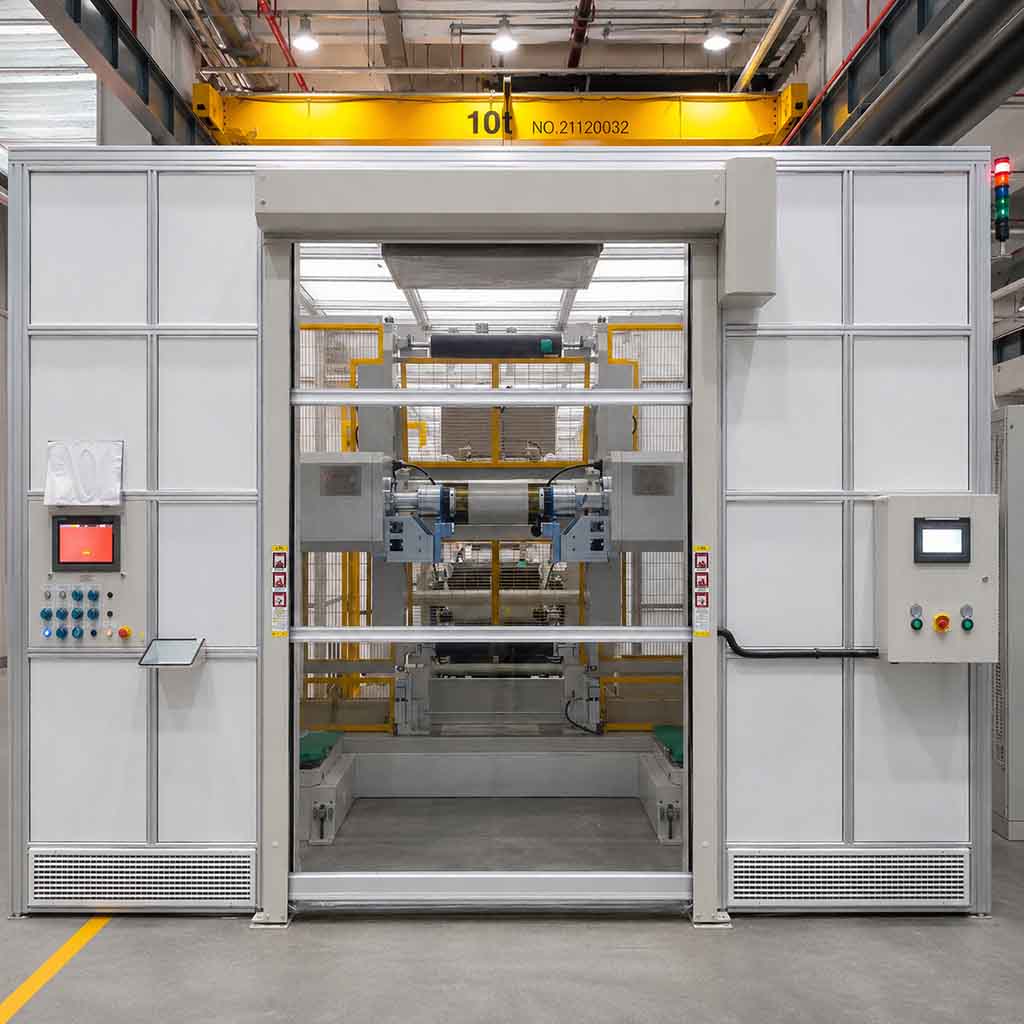

Automated Equipment Rooms
Separates equipment rooms from walkways while maintaining fast entry and compact installation.

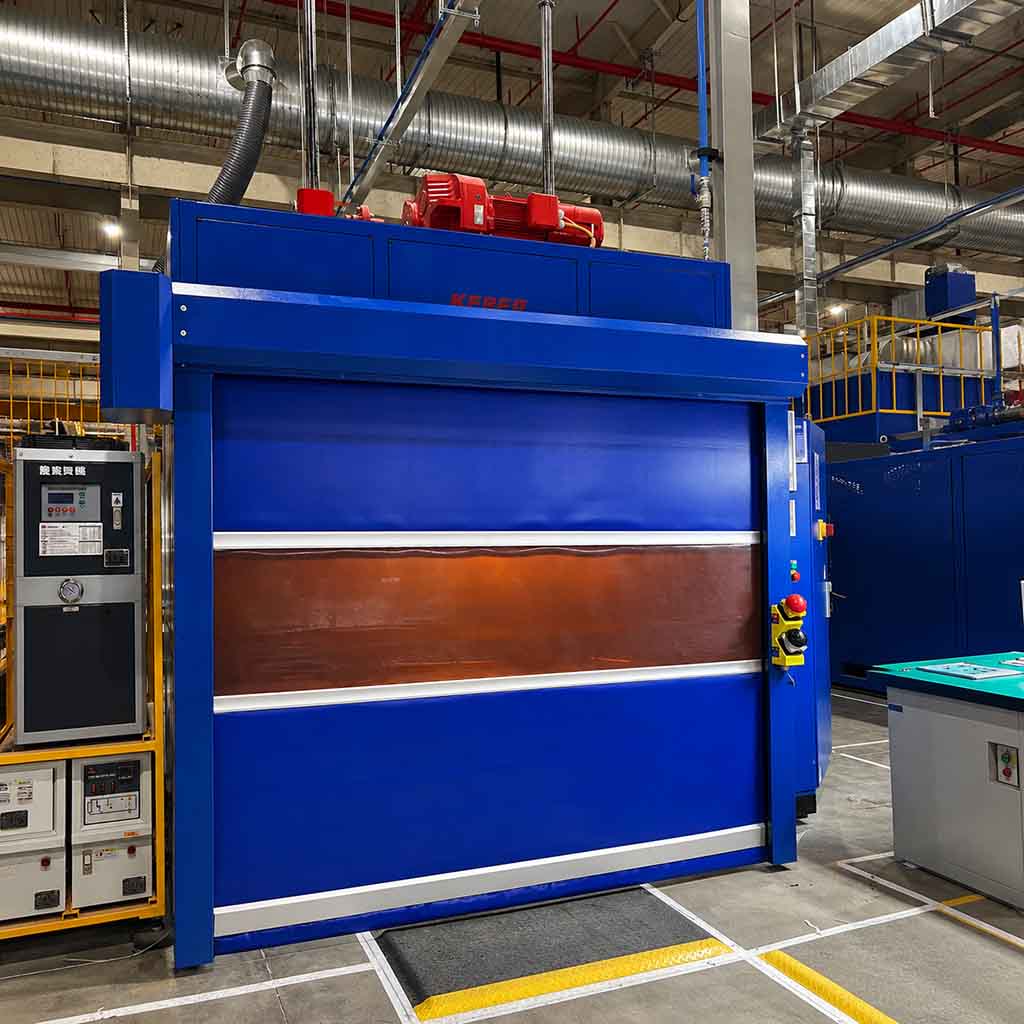

Special Equipment Zones
Custom PVC curtain colors and window layouts can match different production and safety management needs.

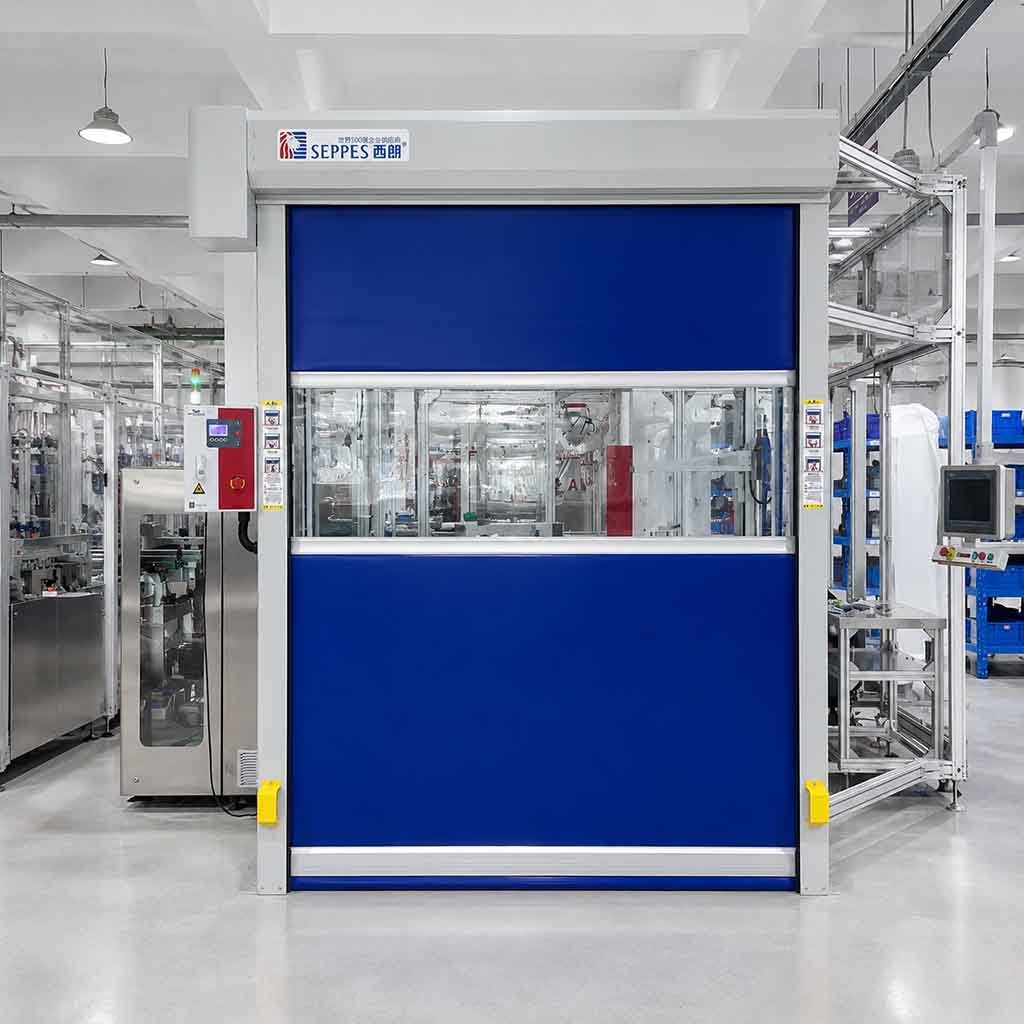

Automated Production Lines
Supports fast cycles for production lines, robot arms, assembly stations and machine centers.

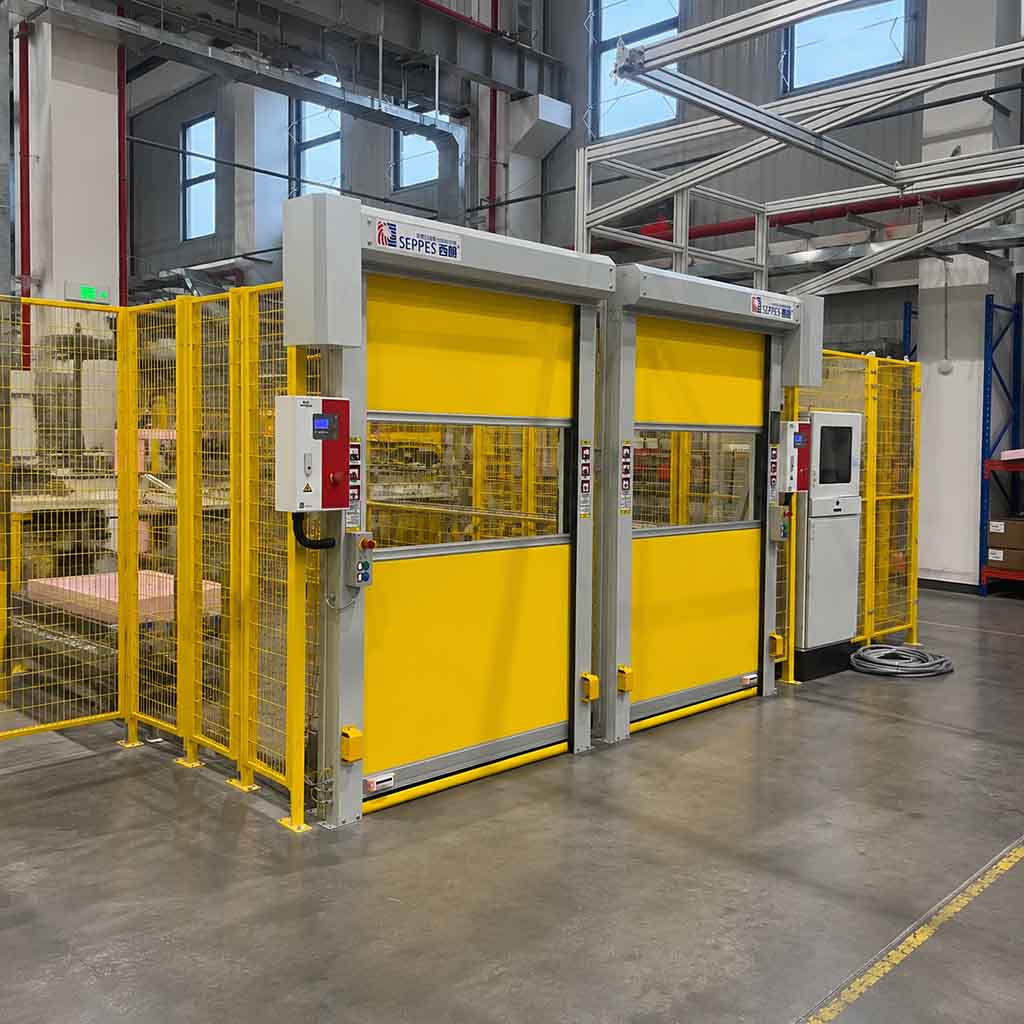

Industrial Machine Enclosures
Creates a controlled access barrier for large equipment, test areas and machine guarding enclosures.

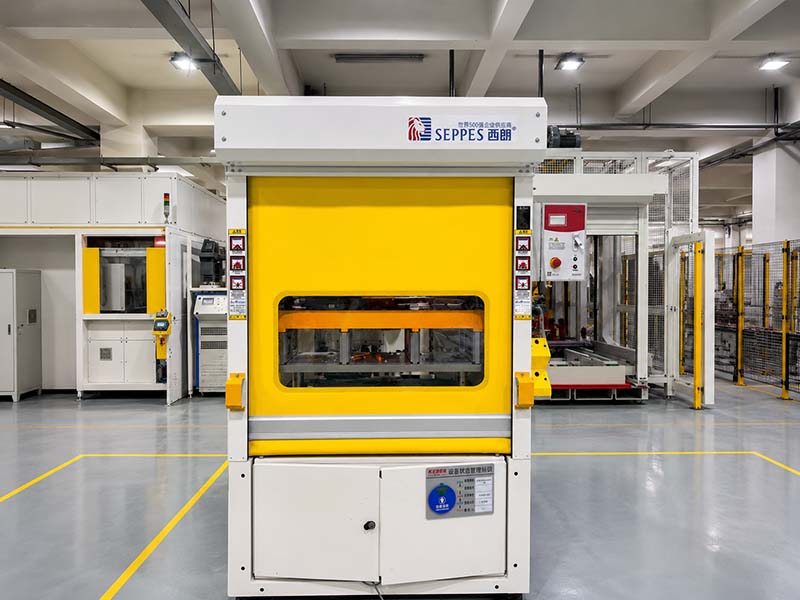

Product Structure and Safety Components
A complete machine protection door system can combine mechanical structure, door curtain, control system, safety sensors and automation signal interfaces.
Machine Protection Door Specifications
The following specifications are based on the SF-FHKSM-1000 protective high-speed door configuration. Final configuration can be customized by project.
| Product Name | Machine Protection Door / Protective High-Speed Door |
|---|---|
| Model | SF-FHKSM-1000 |
| Maximum Opening Size | Width: 1000–4000 mm; Height: 1000–3000 mm |
| Installation Space | Motor side ≥330 mm; Non-motor side ≥130 mm; Above opening ≥450 mm |
| Opening Speed | 1.0–1.8 m/s |
| Closing Speed | 0.6–1.0 m/s |
| Curtain Material | 1.2–2.0 mm PVC, optional colors |
| Frame Material | 3.0 mm thick high-quality integrated aluminum alloy frame |
| Vision Window | Full transparent or red anti-arc window, standard size 125 × 100 mm; custom options available |
| Control System | 7-inch display screen with UL-certified electrical control |
| Drive Motor | Servo motor, 1.0 kW, 220V |
| Limit Device | Multi-turn absolute encoder limit; no accumulated error; stable long-term operation |
| Opening Method | 4-inch roller system |
| Wind Resistance Grade | Grade 6 |
| Sealing Performance | Track-embedded sealing structure and bottom sealing design for uneven floors |
| Emergency Function | Manual lever opening available during power failure or fault conditions |
| Working Environment | Temperature: 0–70°C; Humidity: 40–80% RH |
| Safety Options | Safety edge, infrared photocell, light curtain, safety switch and other optional safety devices |
| Protection Grade | IP65 |
| Power Supply | 220V / 380V |
| Activation Options | Push button, radar sensor, geomagnetic loop, pull switch, remote control and other methods |
| Reserved Interfaces | Remote control, automatic equipment linkage and open/close signal input interfaces are available |
Safety Integration and Control Options
For automated equipment, the door can be configured as part of the production line control logic rather than a standalone access door.
Equipment Linkage
Reserved I/O signal interfaces support linkage with PLCs, robots, conveyors and automated production equipment.
Open / Close Signal Feedback
Door status signals can be used for production line control, alarm logic and machine operation permission.
Obstacle Detection
Photocell, safety edge and light curtain options help detect people or objects during door movement.
Emergency Access
Manual opening is available for emergency or power failure situations, helping reduce downtime and service risk.
Machine Protection Doors vs Standard High-Speed Doors
This comparison helps buyers understand why automated equipment areas need a dedicated machine guarding door solution.
| Item | Standard High-Speed Door | Machine Protection Door |
|---|---|---|
| Main Purpose | Traffic separation, dust control and temperature control | Operator safety, controlled access and machine guarding |
| Typical Area | Workshop passage, warehouse entrance, clean area | Robot cell, welding cell, machine center, equipment enclosure |
| Safety Logic | Basic photocell or safety edge | Multi-layer safety devices and interlock signal options |
| Automation Integration | Optional | Recommended for PLC, robot, conveyor and AGV linkage |
| Vision Window | Optional | Often required for process monitoring and safe inspection |
Custom Machine Protection Doors for Your Equipment Layout
Every automated production line is different. SEPPES can configure the machine protection door according to opening size, hazard type, safety requirements and control method.
Machine Protection Door Project Cases
Use real project photos to demonstrate experience in robotics, automation, equipment rooms and industrial machine protection applications.
Frequently Asked Questions About Machine Protection Doors
What are machine protection doors used for?
Machine protection doors are used to separate personnel from moving machines, robotic cells, welding areas, automated production lines, conveyors and industrial equipment enclosures.
What is the difference between a machine protection door and a standard high-speed door?
A standard high-speed door mainly controls traffic, dust or temperature. A machine protection door focuses on machine guarding, controlled access, process visibility and linkage with automated equipment.
Can the door be integrated with PLCs or automated equipment?
Yes. The control system can reserve signal interfaces for remote control, automatic equipment linkage, PLC connection, robot cell control and conveyor system integration.
Can the door be used for robotic welding cells?
Yes. It can be used for robotic welding cells, especially when configured with suitable curtain material, red anti-arc window, safety devices and project-specific control logic.
What safety devices can be added?
Optional safety devices include safety bottom edge, infrared photocell, light curtain, safety switch and emergency opening device. The final configuration should be selected based on a risk assessment.
Can the machine protection door include a transparent vision window?
Yes. Transparent or red anti-arc vision windows can be added to help operators check internal machine status without entering the guarded area.
What information is needed for a quotation?
Please provide opening width and height, installation space, application area, equipment type, safety device requirements, power supply, control method and whether automation linkage is required.
Can the size, color and control method be customized?
Yes. Door size, PVC curtain color, window layout, safety configuration, activation method and control interface can be customized according to your project.
