In the pursuit of efficient logistics, production environment control and security in the modern industrial and commercial field. High speed doors have become an integral part of factory and business operations. Among them, the zipper fast door and high speed fabric doors as two common types of high speed door. These two types of rapid doors each have unique design and performance characteristics, which can meet the specific needs of different scenarios. This article aims to explore the key differences between the two in depth. Hopefully, this will help you better understand the scenarios and advantages of each.
High speed fabric doors are widely used in environments that require fast access due to their high opening and closing speeds, durability and energy efficiency. Zipper doors, on the other hand, are used in demanding environments thanks to their excellent sealing and wind resistance.
Key Differences Between High Speed Fabric Doors and High Speed Zipper Doors
Design and Operation Mechanism

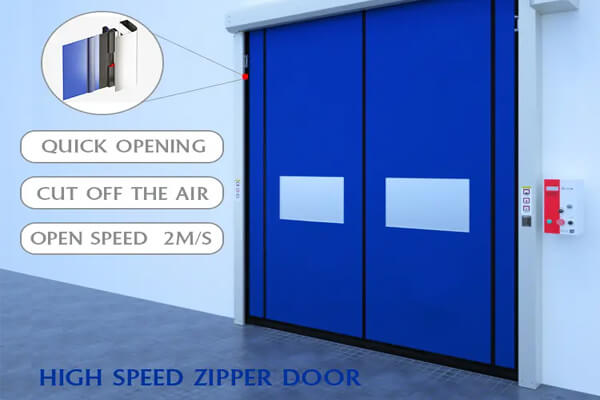

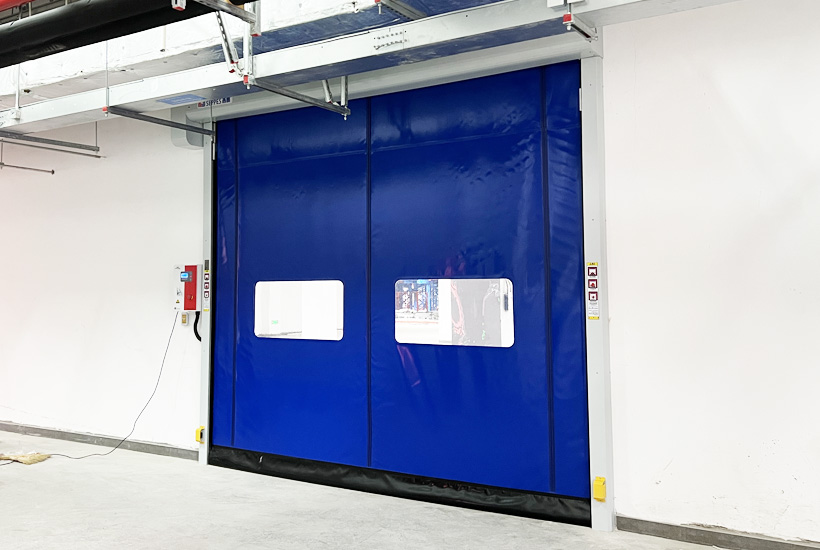

High Speed Zipper Doors
The Zipper Door has a special zipper construction. A high degree of sealing is achieved by the zippers on both sides of the door curtain, which are tightly fitted to the door frame. The zipper high speed door curtain is usually made of a high-strength flexible material, such as PVC, which is able to maintain stability during high-speed opening and has good resistance to wind pressure. Its opening method is similar to the ordinary fast rolling door. But thanks to the zipper structure design. It can achieve better sealing, often used in clean rooms, air shower rooms and other places with high environmental requirements.
High Speed Fabric Doors
High Speed Fabric Doors, as the name suggests, are doors where the curtain is stored in a rolled-up fashion on a top roll. The shutter is rotated by an electric motor, so that the shutter can be rolled up and down. The curtain of the rapid rolling door is made of various materials, commonly PVC, aluminum alloy, etc., which is suitable for the needs in different environments. The opening speed of the fast door is usually between 0.8m/s-1.5m/s. Compared with the zipper rapid door, the sealing of the rapid door is poor.
Design and Structural Differences
Zipper Sealing Structure
Due to its unique zipper design, the zipper door has excellent performance in sealing, which can effectively isolate the external environment, such as dust, pests, temperature changes, etc. It is especially suitable for the occasions that have strict requirements on environmental control, such as food processing, pharmaceutical manufacturing, electronic chip production, etc.
Brush Sealing Structure
Traditional fast rolling doors are usually equipped with brushes or sealing strips to help enhance the sealing between the door frame and curtain. However, the sealing effect of this design is not as effective as that of high speed zipper doors. Especially in high wind speeds or bad weather, where the zipper door is more advantageous.
Sealing Performance and Safety
Zipper doors are more airtight and are suitable for environments where airtightness is critical, such as cold chain warehouses and clean rooms. The zipper design can effectively reduce temperature loss or air exchange, maintaining a stable environment.
High speed roll-up doors are less airtight, although equipped with brush seals. However, the sealing effect is insufficient under high pressure wind or extreme weather. This may result in energy loss or unstable environmental conditions.
Energy Efficiency and Sustainability
The superior sealing properties of zipper doors help keep temperature and humidity stable, thus reducing wasted cooling or heating. This makes the zipper door an outstanding energy saver. They are particularly suitable for facilities with stringent temperature control requirements.
Although the fabric roll up door can also provide some insulation, but due to its lower sealing . It is inferior to zipper doors in terms of energy saving. In high or low temperature environments, rapid rolling doors are less energy efficient.
Applicable Scenarios and Installation Locations
Due to its excellent sealing performance and high-speed opening and closing ability. Zipper fast door is especially suitable for frequent access and have very high requirements for environmental control of the area, such as dust-free workshop, cold chain logistics, pharmaceutical workshops.
Because of its high cost-effective and wide applicability. Fast rolling door is commonly used in warehouses, logistics centers, parking lots, shopping malls, and other places that need to be opened quickly to enhance the efficiency and safety of passage.
Maintenance and Cost
Zipper fast door
Although the zipper fast door has more advantages in performance. But its complex structure and material requirements may lead to higher initial investment and maintenance costs. However, the zipper door has a self-repairing function, in time the door curtain from the track derailment. The door curtain will automatically guide the door curtain in the next running cycle to re-rail, to a large extent, can reduce the cost of late maintenance.
Rapid rolling door
In contrast, the structure of the rapid rolling door is relatively simple, the cost is relatively low. And the daily maintenance is more convenient, is a good choice in the case of limited budget.
Zipper door and fabric roll-up doors each have their own advantages. The choice of which type of high speed door to use depends on the specific needs of the application, budgetary constraints and the degree of environmental control required. In practice, understanding the differences and characteristics of the two types of doors can help to make a more logical and economical choice to meet a particular application. It helps to make a more reasonable and economical choice to meet the needs of efficient operation and safety management in specific scenarios.
FAQ
What is the difference in cost between fabric roll up doors and zipper doors?
Fabric roll up doors are usually cheaper than zipper doors in terms of initial purchase cost. This is due to the simpler design of fabric roll up doors and the relatively low cost of materials and installation. However, zipper doors are usually more expensive due to their high strength materials and complex zipper design. Although zipper doors have a larger initial investment, their advantages in energy efficiency and durability make them potentially more cost-effective in the long term.
Can zipper doors handle extreme weather conditions like high winds?
Yes. Due to their unique zipper design, the door curtains are very tightly bonded to the door frame, thus enhancing the door’s wind resistance. The flexible materials and construction of the zipper door effectively resist high wind speeds. And it ensures that the door is stable from the outside weather. As a result. Zipper speed shutter doors are an ideal choice for areas that are often affected by storms or strong winds.
How often should fabric roll up doors be maintained?
The frequency of maintenance of fabric roll up doors depends on the frequency of use and environmental conditions. Normally, a full inspection is recommended every 6 months, especially in environments with high frequency use. If the door is subjected to frequent impacts, or if the working environment is harsh (e.g. dusty, oily or humid areas). More frequent inspections and maintenance are required. Regularly check the motor, rollers and curtains to ensure that the door operates smoothly and to avoid minor problems leading to bigger failures.
Are zipper doors suitable for high-traffic areas?
Yes, zipper doors are ideal for high-frequency use. They are robustly designed to withstand high-frequency opening and, thanks to their rapid operation, they increase the efficiency of access. The high speed and excellent sealing of zipper doors make them particularly suitable for high-traffic areas that require fast access. Such as logistics warehouses, sorting centers and large industrial plants. In addition, the zipper design reduces wear and tear on the door curtain when open frequently, extending its service life.
What are the top manufacturers and brands of high speed fabric doors and zipper doors?
There are several reputed manufacturers of fast doors in the market. Which offering high quality high speed fabric doors (fast roller doors) and zipper doors (zipper fast doors). Some of the renowned brands include SEPPES, a leading industrial door manufacturer that specializes in the production of high-quality fast door systems. Including fast roll-up doors and zipper doors for a variety of industries.
